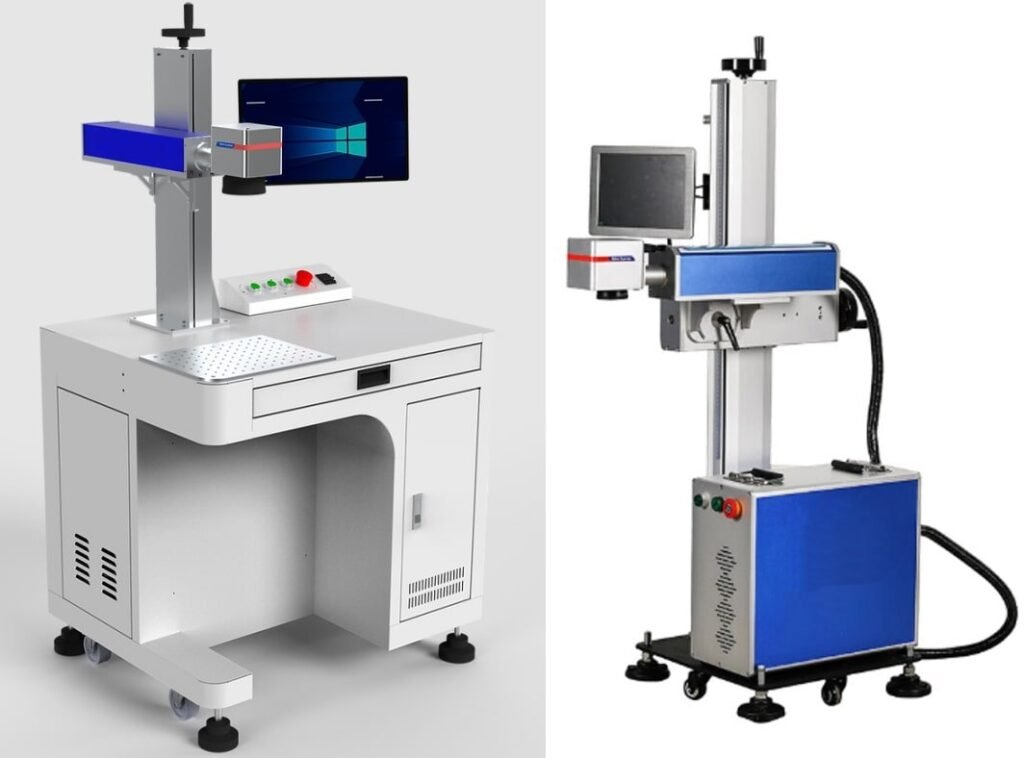

LASER Fiber Metal Making Machine

Enhance your marking with the Cirotechs Laser Fiber Marker. Equipped with a Raycus laser (20-100W, 1064nm), it offers high-speed precision (7000mm/s) and fine details (0.01mm line width). With a 110x110mm to 300x300mm marking area, air-cooled system, and durable design, it’s ideal for metals, plastics, and ceramics in automotive, jewelry, medical, and packaging applications. Enjoy efficiency, low maintenance, and safety. Discover more at Cirotechs Laser Fiber Marker.

LASER Fiber Metal Making Machine

Key Features

  • LASER Source: 20-100W power, 1064nm wavelength, 20-80kHz modulation.

  • High-Speed Galvo: Up to 7000mm/s, 0.001mm resolution, ±0.003mm precision.

  • Marking Range: 110x110mm to 300x300mm, 0.01mm min line width, 0.2mm min character height.

  • Optical Isolation: Enhances safety and performance stability.

  • Air Cooling System: 0.5KW, 220V/50-60Hz (110V optional).

  • Adjustable Table: 285mm stroke for flexible positioning.

  • Environmental Tolerance: Operates in 0-35°C, up to 90% humidity.

  • Compact Design: Lightweight and portable for easy integration.

  • Low Maintenance: Minimal upkeep with durable components.

Techincal Specification

Laser Parameters
LASER Source MAX (Optional Raycus , JPT, OEM, IPG)
Laser wavelength 1064nm
Average output power 20W / 30W / 50W / 70W / 100W
Light isolation Included
Modulation frequency range 20kHz ~ 80kHz
Galvo Parameters
Maximum speed 7000mm/s
Resolution 0.001mm
Repositioning precision ±0.003mm
Optical Output Characteristics
Marking area 110×110mm, 150×150mm, 200×200mm, 300×300mm
Minimum line width 0.01mm
Minimum height of characters 0.2mm
Cooling System
Cooling way Air cooling
System Properties
Laser power supply 0.5KW / AC220V / 50Hz–60Hz (optional 110V)
Manual working table stroke Movement itinerary 285mm (desktop type)
Environmental requirements 0–35°C, ≤90% humidity
Optional Device Rotary Attachment
Applications

  • Industrial Marking: Serial numbers, barcodes on automotive/aerospace parts.

  • Jewelry Engraving: Intricate designs on metals and alloys.

  • Medical Devices: Permanent, compliant markings on tools/implants.

  • Consumer Products: Branding on electronics, tools, promotional items.

  • Packaging: High-speed QR codes, batch numbers on materials.

  • Tool Manufacturing: Durable markings for identification and traceability.

Benefits

  • High Precision: Crisp, detailed marks for professional results.

  • Versatile: Works on metals, plastics, ceramics across various sizes.

  • Efficient: Fast marking speeds boost productivity.

  • Cost-Effective: Low power use and minimal maintenance costs.

  • Durable: Reliable in diverse environmental conditions.

  • Safe Operation: Optical isolation ensures user and equipment safety.

  • User-Friendly: Easy setup and adjustable table for operator convenience.
